Full AC Servo Motors make acceleration nearly instant at 8G of force with top speeds of 3,500 mm/sec on all RF 极品人妻洗澡后被朋友玩.
Linear guide rails with ball bearings offer greater precision and smoother motion, which improves print quality and longevity.
A lightweight laser head contributes to less over-scanning and an overall reduction in vibration.
Most lasers employ a unibody structure where the components are bolted to a thin outer shell. However, if you have the need for speed, it's of utmost importance to make the frame as rigid as possible to stop the machine from flexing. The 恋爱的目的 series frame is so robust, you can even remove the entire side panel for greater accessibility when troubleshooting.
The MIRA series now joins the NOVAs with its Super Clean Pack design. Not only are the linear rails and bearing blocks enclosed, but protective curtains on the left and right side rails now prevent unwanted particles from spreading beyond your work area. Centrifugal fans have been replaced by quieter and easier to clean inline fans.
Quickly swap between higher or lower wattage tubes as needed with the Modular Tube Docking Station. This toolless design allows you to switch between various wavelengths on all 极品人妻洗澡后被朋友玩, such as 1064nm Fiber lasers. This opens up a whole new world of possibilities by vastly increasing the range of materials one can process while delivering results of the utmost quality.
All Aeon lasers are now equipped with built-in 国产网红女主播精品视频 cameras for precise positioning and monitoring.
Say goodbye to collisions and gouged material. The Aeon 恋爱的目的 Series has a newly designed laser head with integrated autofocus.
For the 恋爱的目的 Series, the design team was finally able to include an infinite front-to-back passthrough in all MIRA 极品人妻洗澡后被朋友玩!
The already well-lit work area just got brighter with the addition of 2 more LED lights on the underside of the MIRA lid, just behind the handle. When the lid is opened, the 2 interior LEDs turn off and the overhead lights turn on to illuminate your work area, while loading material and using the camera. There is even a dimmer knob on the side of the machine for setting the mood just right.
Aeon is renowned for its stylish and sleek appearance. The Aeon Laser logo on the front access door panel is now backlit and doubles as a functional Status Light, illuminating white when in standby, red when an error is encountered, and green while in operation, adding both form and function to an already stunning design.
The most recent revision to the NOVA Keypad now makes its way to the MIRA 恋爱的目的 Series, which brings commonly used functions right to the surface, for reduced setup times and overall ease of use. You can even monitor water temperature, amperage (mA), air pressure (psi), and the temperature of your optics right from the vibrant 5" LCD display, for the ultimate user experience.
Say goodbye to painstaking tube replacements. This innovative approach allows for swapping of tubes in and out of your Aeon laser, without having to renegotiate the beam path. This means it is now feasible to keep a spare tube on the shelf or quickly swap between higher or lower wattage tubes as needed.
All mirrors are now easily accessible and can be cleaned or replaced without the use of any tools or having to recalibrate.
The lens cartridges on all 恋爱的目的 极品人妻洗澡后被朋友玩 are now magnetic and the focal lens itself is press fit with a silicone washer, for easy access.
All optics are now fitted with thermal sensors to record and report temperature readings to the keypad, thus eliminating the likelihood of unexpected failures. This proactive approach not only saves you from costly mistakes and downtime, it also reduces the need for frequent unwarranted cleaning. To top it off, the controller now records these readings along with ambient temperature, laser tube runtime and machine parameters, to serve as a diagnostic log in the event troubleshooting is needed.
To further reduce the need for maintenance, all optics are now fully removed from the work area, taking the Clean Pack Design to its highest potential.
With the laser head sealed to where no dust or debris can enter, all that remains are a series of cost effective windows, which are far easier to maintain and replace if needed.
Ensuring your laser is level can now be done at a glance. Both MIRAs and NOVAs are fitted with Bullseye Leveling Gauges.
| Model | MIRA 7 S | MIRA 9 S |
|---|---|---|
| Machine Size | ||
| Working Area | 19 11/16″ x 27 1/2″ (500*700mm) | 23 5/8″ x 35 1/2″ (600*900mm) |
| Z-Axis Max Bed Travel | 5-1/2” (140mm) | 5-7/8” (150mm) |
| Machine Dimensions | 45 1/4″ x 37 5/8″ x 20 1/4″ (1150*955*515mm) | 64″ x 42 1/2″ x 20 5/8″ (1625*1080*525mm) Includes 12" (300mm) Tube Extension |
| Machine Weight | 396lbs (180kg) | 551lbs (250kg) |
| Laser Source | ||
| DC Glass Tube | 60W Premium CO2 Glass Tube | 100W Premium CO2 Glass Tube |
| RF Metal Tube | 60W RF Metal Tube | |
| CO2 Glass Cooling Method | Water | Water |
| RF Metal Cooling Method | Air | Air |
| Performance | ||
| Motors | High Speed DC Steppers AC Servos (RF Metal) |
High Speed DC Steppers AC Servos (RF Metal) |
| Guide Rails | Hiwin Linear Rails | Hiwin Linear Rails |
| Max Acceleration | 5G (DC) / 8G (RF) | 5G (DC) / 8G (RF) |
| Max Speed | 1200mm/s (DC Glass) 3500mm/s (RF Metal) |
1200mm/s (DC Glass) 3500mm/s (RF Metal) |
| Minimum Font Size | 1.0 x 1.0mm | 1.0 x 1.0mm |
| Positioning Accuracy | <=0.01mm | <=0.01mm |
| Max Scanning Precision | 1000 DPI | 1000 DPI |
| Max Lifting Capacity | 55lbs (25kg) | 55lbs (25kg) |
| Configuration | ||
| Water Chiller | Built-in S&A 3000 Fan Cooled Chiller (not included with RF Metal 极品人妻洗澡后被朋友玩) |
Built-in S&A 5000 Vapor Compression Chiller (not included with RF Metal 极品人妻洗澡后被朋友玩) |
| Fume Exhaust Fan | Built-in 110W, 6" Dia. Axial Inline Fan | Built-in 110W, 6" Dia. Axial Inline Fan |
| Air Assist | Built-in 85w Air Pump | Built-in 85w Air Pump |
| Clean Pack Design | X and Y Axis | X and Y Axis |
| Autofocus | Integrated | Integrated |
| Wifi Data Transfer | ||
| Red Dot Positioning | ||
| Material Pass Through Door | ||
| Bullseye Leveling Guage | ||
| Dimmable Overhead Lighting | ||
| Smart Air Solenoid Valve | ||
| Modular Laser Tube Docking | ||
| Lid Material | 国产网红女主播精品视频 | 国产网红女主播精品视频 |
| Table | ||
| Downdraft | ||
| Blade Table | ||
| Honeycomb Table | ||
| Material Collection Tray | ||
| Control & Software | ||
| Control Panel | 5" Keypad & LCD display | 5" Keypad & LCD display |
| Memory Capacity | 1GB | 1GB |
| Lightburn Software | ||
| Compatible Software | CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the 恋爱的味道ed file formats | CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the 恋爱的味道ed file formats |
| Operating System | Windows & Mac OSX | Windows & Mac OSX |
| File Formats 恋爱的味道ed | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA |
| Optics | ||
| Toolless Mirror Change | ||
| Magnetic Lens Cartridge | ||
| Isolated Optics | ||
| 1.5" Lens | Optional | Optional |
| 2" Lens | Standard | Standard |
| 2.5" Lens | Optional | Optional |
| 4" Lens | Standard | Standard |
| Mirror Sizes | φ25mm (x3) | φ25mm (x3) |
| Beam Combiner | φ25mm | φ25mm |
| Protective Window | φ20mm | φ20mm |
| Safety | ||
| Safety Level | Class 1 | Class 1 |
| Smart Monitoring | ||
| Optics Temperature Alarm | ||
| Diagnostic Log | ||
| LED Status Light | ||
| Lid Interlock | ||
| Side Panel Interlocks | ||
| Water Flow Protection | ||
| Water Temperature Alarm | ||
| Power Requirments | ||
| Voltage/Frequency | 110v/60Hz | 110v/60Hz |
| Amperage | 15A Dedicated Circuit | 20A Dedicated Circuit |
| Rated Power Draw | 500W (max wattage laser tube) | 1400W (max wattage laser tube) |
| Package | ||
| Package Size | 49" x 43" x 29" (1250*1110*740mm) | 69" x 46-1/2" x 29-1/2" (1750*1180*750mm) Includes 12" (300mm) Tube Extension |
| Packed Gross Weight (G.W) | 474lbs (215kg) | 637lbs (289kg) |
| Add-Ons | ||
| Camera | ||
| Stand | Optional | Optional |
| Smart Rotary | Optional | Optional |
| Multi Roller | Optional | Optional |
| Rotary Chuck | Optional | Optional |
| Filtered Fume Extractor | Optional | Optional |
| Wireless Remote Control | Optional | Optional |
| Air Compressor | Optional | Optional |
| 恋爱的味道 | ||
| Knowledge Base | ||
| Email 恋爱的味道 | Unlimited | Unlimited |
| Phone / Video 恋爱的味道 | ||
| Onsite Repairs | ||
| Parts on Demand | ||
| Startup Training | ||
| Warranty | 2 Year Factory Warranty | 2 Year Factory Warranty |

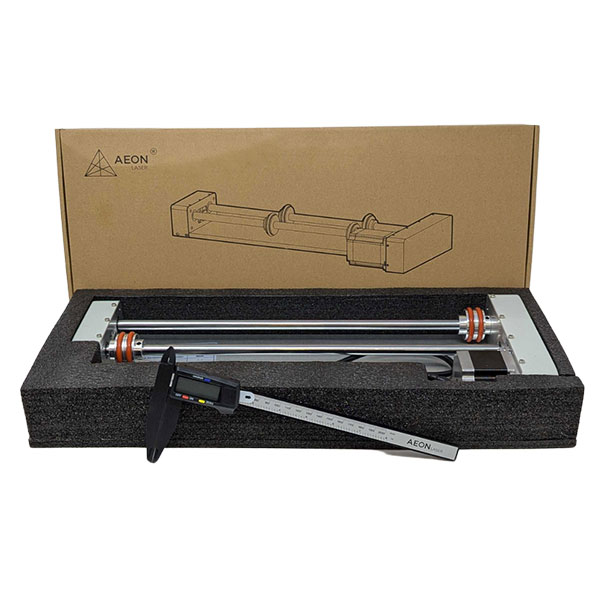

Expand your capabilities with this versatile roller rotary device. Perfect for 国产网红无码精品视频 bottles, champagne flutes, wine glasses, etc.
Not just any old table will do. The R&D team put their signature on this sleek modern looking stand, which storage drawers and wheels for added convenience.
Programming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand.
CO2 lasers are commonly used for various applications like cutting, 国产网红无码精品视频, and marking. The type of laser tube used in these devices plays a crucial role in their performance, lifespan, and maintenance requirements. Here's a breakdown of the differences between glass tubes, RF metal tubes, and RF ceramic tubes in CO2 lasers:
1. Beam Profile The beam profile plays a significant role in cutting quality. You ideally want a larger beam diameter going into the lens to cut well. An RF tube uses a beam expander (typically 2.5x) but beam expanders don't allow for enough size increase to match a glass laser tube. Glass laser tubes have an advantage here.
2. Pulses vs Continuous Power 2. RF laser tubes operate in pulses, similar to a light switch flicking on and off thousands of times a second. A glass laser tube stays on continuously, providing uninterrupted power. This leads to smoother cutting, as there's no delay or pause between pulses.
Here are some example test cuts on Acrylic in both 1/8” (3mm) and 1/4” (6mm), using a 60w RF tube vs a 60w Glass tube. Both machines are using a 2” lens.
Note: The RF laser tube offers great edges when cutting thin materials. However, with thicker materials, the edge quality begins to suffer with the RF tube; this is where a glass laser tube really shines.
Yes, the 恋爱的目的 极品人妻洗澡后被朋友玩 are compatible with all of the rotary attachments we offer, including: Smart Rotary, Rotary Chuck, Mult-Roller, Rotoboss and PiBurn.
Yes, it will fit. We tested a 40oz Stanley Dupe Tumbler in a MIRA5 S 恋爱的目的 laser using a PiBurn Grip rotary at the correct focal height for a 2.5-inch lens. The tumbler fits comfortably with the blade table still in place, leaving room to spare.
For reference, the Z Axis Travel Height on the MIRA5 S and MIRA7 S is 5-1/5″ (140mm), MIRA9 S is 5-7/8″ (150mm). All NOVA S and Super NOVA S 极品人妻洗澡后被朋友玩 are 7-7/8″ (200mm).
The MIRA7 S is the only one that got a larger work area, going from 450mm to 500mm on the Y axis.
Unfortunately, no. The 恋爱的目的 极品人妻洗澡后被朋友玩 have been redesigned from the ground up.
